Pushbutton switch MSP
-
●To buy this product, please go to the following Online Web stores.
Specifications
| Rating Max. | Silver plated contacts：3A 125 VAC （Resistive load） |
|---|---|
| Initial contact resistance | Silver plated contacts：20 mΩ max. (1 A 2～4 VDC） |
| Dielectric strength | 1,000 VAC 1 minute |
| Insulation resistance | 100 MΩ min. (500 VDC) |
| Electrical life | 5,000 operations |
Part Numbering
| MSP- | 1 | 03 | B | Z |
|---|---|---|---|---|
|
Series code |
Poles |
Current |
Switching Function B: ON －（OFF） |
List of part numbers
| Part Numbe | Poles | Terminal Style | Switching Function | Contact plating | CAD |
|---|---|---|---|---|---|
| MSP103B-Z | 1 bit | Solder terminal | ON - (OFF) | Silver plated | |
| MSP103C-Z | 1 bit | Solder terminal | OFF - (ON) | Silver plated |

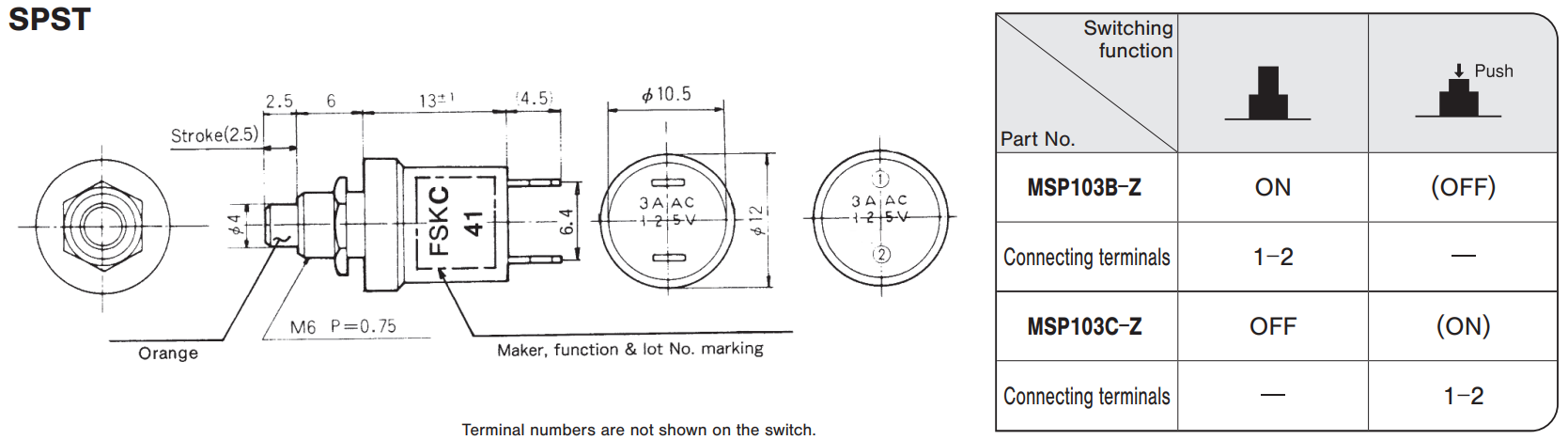

Outline Dimensions
(Unit:mm)
Terminal Style
Panel Cut-Out Dimensions
Soldering Specifications
- Manual Soldering Device：Soldering iron
380°C, 3 seconds, Max.
Documents
Environmental files
- ●The above contents and descriptions are subject to change without notice.
