Pressure transducer P-2000
-
P-2000
-
P-2000
-
●To buy this product, please go to the following Online Web stores.
Widely Used in A Variety of Applications
FeaturesFeatures
-
Compact and Light Weight
-
For Non-Corrosive Gases
-
Dual In-Line Package
-
Pressure Range: ~ 9.81, ~ 981 kPa {~0.1, ~10 kgf/cm2｝
-
In this series, material data sheets for Full Material Declarations
can be downloaded in chemSHERPA-AI format - Download chemSHERPA-AI from the list of P/N below
Part Number Designation
| P-2000 - | 501 | G- | 15 - | BN |
|---|---|---|---|---|
|
Series name |
Rated pressure range 101: 0 ~ 9.81 kPa {0 ~ 0.1 kgf/cm2 } |
Pressure reference G: Gauge |
Thermal error 15: ± 0.15 % (± 0.12 %) F.S./°C |
Terminal direction AN: Same direction as the pressure port |
List of Part Numbers
CAD models and chemSHERPA-AI files can be downloaded for each P/N from below. *Need to log in to download.
[chemSHERPA.shai2 version: 2.12.00]
| Part No. | Rated Pressure Range | Maximum Pressure | Break-down Pressure | Full Material Declarations | CAD | |
|---|---|---|---|---|---|---|
| P-2000-101G-15-AN※1 | 9.81 kPa {0.1 kgf/cm2} |
19.6 kPa {0.2 kgf/cm2} |
49 kPa {0.5 kgf/cm2} |
|||
| P-2000-101G-15-BN | 9.81 kPa {0.1 kgf/cm2} |
19.6 kPa {0.2 kgf/cm2} |
49 kPa {0.5 kgf/cm2} |
|||
| P-2000-501G-15-AN※1 | 49 kPa {0.5 kgf/cm2} |
98.1 kPa {1.0 kgf/cm2} |
245 kPa {2.5 kgf/cm2} |
|||
| P-2000-501G-15-BN | 49 kPa {0.5 kgf/cm2} |
98.1 kPa {1.0 kgf/cm2} |
245 kPa {2.5 kgf/cm2} |
|||
| P-2000-102G-15-AN※1 | 98.1 kPa {1.0 kgf/cm2} |
196 kPa {2.0 kgf/cm2} |
490 kPa {5 kgf/cm2} |
|||
| P-2000-102G-15-BN | 98.1 kPa {1.0 kgf/cm2} |
196 kPa {2.0 kgf/cm2} |
490 kPa {5 kgf/cm2} |
|||
| P-2000-352G-15-AN※1 | 343 kPa {3.5 kgf/cm2} |
686 kPa {7.0 kgf/cm2} |
1030 kPa {10.5 kgf/cm2} |
|||
| P-2000-352G-15-BN | 343 kPa {3.5 kgf/cm2} |
686 kPa {7.0 kgf/cm2} |
1030 kPa {10.5 kgf/cm2} |
|||
| P-2000-502G-15-AN※1 | 490 kPa {5 kgf/cm2} |
981 kPa {10 kgf/cm2} |
1471 kPa {15 kgf/cm2} |
|||
| P-2000-502G-15-BN | 490 kPa {5 kgf/cm2} |
981 kPa {10 kgf/cm2} |
1471 kPa {15 kgf/cm2} |
|||
| P-2000-702G-15-AN※1 | 686 kPa {7 kgf/cm2} |
1373 kPa {14 kgf/cm2} |
1961 kPa {20 kgf/cm2} |
|||
| P-2000-702G-15-BN | 686 kPa {7 kgf/cm2} |
1373 kPa {14 kgf/cm2} |
1961 kPa {20 kgf/cm2} |
|||
| P-2000-103G-15-AN※1 | 981 kPa {10.0 kgf/cm2} |
1471 kPa {15.0 kgf/cm2} |
1961 kPa {20 kgf/cm2} |
|||
| P-2000-103G-15-BN | 981 kPa {10.0 kgf/cm2} |
1471 kPa {15.0 kgf/cm2} |
1961 kPa {20 kgf/cm2} |
※1
“AN” types at the end of the part number are made to order.
The chemSHERPA Data (AI) Entry Support Tool for articles V2R1.02.0 (compatible with up to the file ver. 2.12.00) can be downloaded from the official chemSHERPA website here.
Standard Specifications
| Operating temp. range | - 20 ~ 80 ℃ |
|---|---|
| Compensated temp. range | 0 ~ 50 ℃ |
| Operating humidity | 35 ~ 85 %RH（No condensation） |
| Storage temp. | - 20 ~ 80 ℃（Atmospheric pressure, humidity 65 %RH maximum） |
| Bridge resistance | 3300 ± 30 %Ω |
| Pressure medium | Non-corrosive gases |
| Insulation resistance | 100 MΩ (500 VDC) Min. |
| Dielectric strength | 500 VAC, 60 s (Leakage current 1 mA maximum) |
| Pressure port | φ 3.2 mm |
Analog Output
| Pressure range | Offset voltage | Span voltage | Linearity/Hysteresis | ZERO %F.S./°C | SPAN %F.S./°C | Response |
|---|---|---|---|---|---|---|
| 0 ~ 9.81 kPa {0 ~ 0.1 kgf/cm2} |
± 20 mV | 50 ± 20 mV | ± 0.3 %F.S. | ± 0.15 | ± 0.05 | Approx. 1 ms |
| 0 ~ 49.0 kPa {0 ~ 0.5 kgf/cm2} |
± 15 mV | 90 ± 30 mV | ± 0.3 %F.S. | ± 0.12 | ± 0.04 | Approx. 1 ms |
| 0 ~ 98.1 kPa {0 ~ 1 kgf/cm2} |
± 15 mV | 90 ± 30 mV | ± 0.3 %F.S. | ± 0.12 | ± 0.04 | Approx. 1 ms |
| 0 ~ 343 kPa {0 ~ 3.5 kgf/cm2} |
± 15 mV | 90 ± 30 mV | ± 0.3 %F.S. | ± 0.12 | ± 0.04 | Approx. 1 ms |
| 0 ~ 490 kPa {0 ~ 5 kgf/cm2} |
± 15 mV | 90 ± 30 mV | ± 0.3 %F.S. | ± 0.12 | ± 0.04 | Approx. 1 ms |
| 0 ~ 686 kPa {0 ~ 7 kgf/cm2} |
± 15 mV | 90 ± 30 mV | ± 0.3 %F.S. | ± 0.12 | ± 0.04 | Approx. 1 ms |
| 0 ~ 981 kPa {0 ~ 10 kgf/cm2} |
± 15 mV | 90 ± 30 mV | ± 0.3 %F.S. | ± 0.12 | ± 0.04 | Approx. 1ms |
Environment Characteristics
| Test item | Test conditions (At 25 ± 5 °C) | Permissible change |
|---|---|---|
| Vibration | 10 ~ 500 Hz, 1.5 mm maximum / 98.1 m/s2, 3 directions for 2 hours each |
Offset voltage / Span voltage: |
| Shock | 981 m/s2, 3 directions for 3 times each | |
| Pressure cycling | 0 ~ Rated pressure, 106 cycles | |
| Moisture resistance | 40 °C, 90 ~ 95 %RH, 240 hrs. |
※ P-2000 series can be operated at the vacuum pressure.

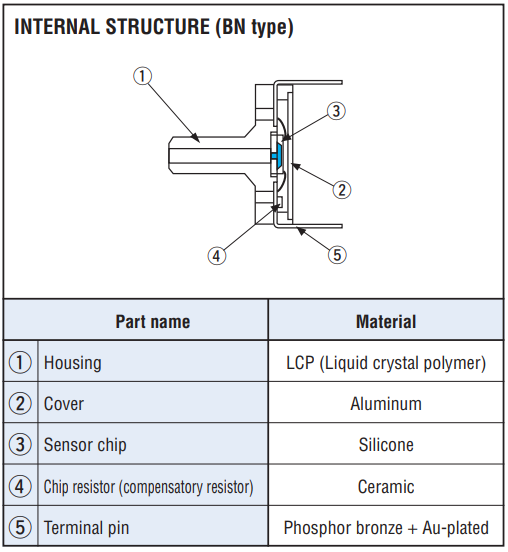

Outline Dimensions
Internal Circuit Diagram
Terminal Number
Documents
- ●The above contents and descriptions are subject to change without notice.
