Brushless DC fan F17HA
-
●To buy this product, please go to the following Online Web stores.
ULTRA SMALL □ 17mm FAN MOTOR
- Low noise, 7 dB (A) type by the correct application of hydrodynamic design of impeller and frame
- Light weight (approx. 2.3 g)
PART NUMBER DESIGNATION
| F17HA- | 05 | M | C |
|---|---|---|---|
|
Series name |
Power supply 05：DC5 V |
Air flow M：0.015 m3/min |
Bearing 1 sleeve bearing |
LIST OF PART NUMBERS
| Power supply | Part number | CAD |
|---|---|---|
| 5 VDC | F17HA-05MC | |
| F17HA-05HC |
STRUCTURE / MAIN MATERIAL
| Component | Materials |
|---|---|
| Housing | Made of modified (LCP) reinforces |
| Cover | Made of modified (SUS) reinforces |
| Impeller | Made of modified (ABS / PBT ALLOY) reinforces |
| Bearing | Sleeve bearibng |
STANDARD SPECIFICATIONS
| Item | F17HA-05MC | F17HA-05HC |
|---|---|---|
| Rated voltage | DC5 V | |
| Voltage range | 4.5 ~ 5.5 V | |
| Rated current | 0.03 A | 0.06 A |
| Rotating speed | 8000 min-1 | 11000 min-1 |
| Air flow | 0.015 m3 /min | 0.018 m3 /min |
| Static pressure | 10.0 Pa | 17.0 Pa |
| Noise | 7 dB (A) | 15 dB (A) |
| Use environment | –10 ~ +60 °C (35 ~ 85 %RH) | |
| Storage environment | –20 ~ +70 °C (35 ~ 85 %RH) | |
| Net weight | Approx. 2.3 g | |
- The specifications above are typical values measured on the conditions of no-loading running with rated voltage in the circumstances of 25 °C± 2 °C, 35~ 85 %RH.
- Please contact us if you would liketo check the specifications in different circumstances.

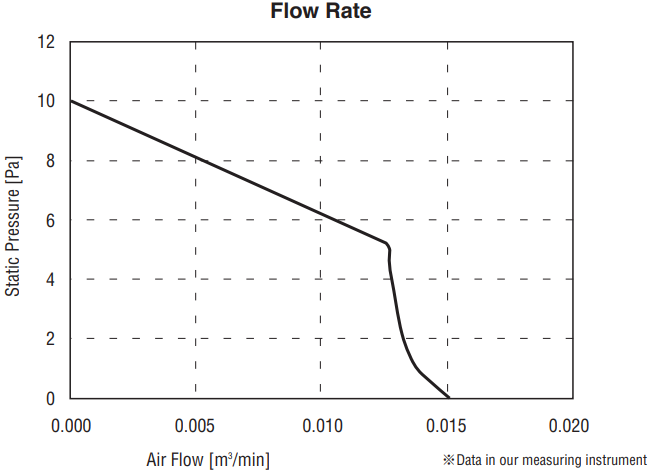

AIR FLOW PERFORMANCE CURVES

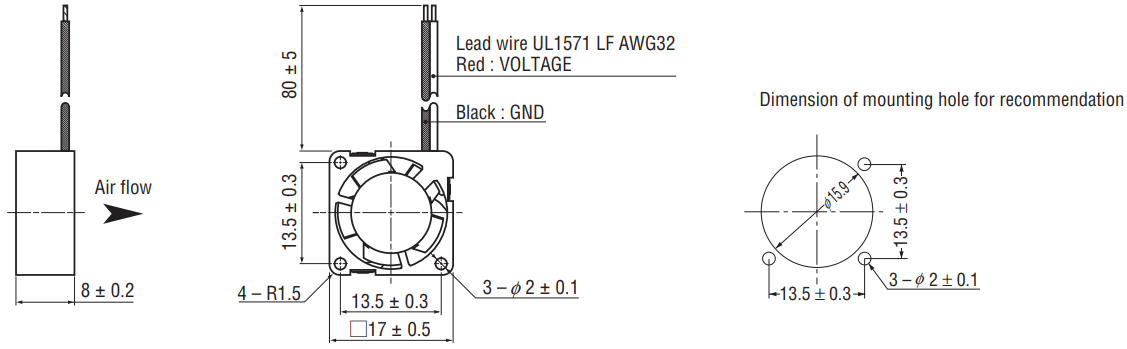

OUTLINE DIMENSIONS
