Trimmer potentiometer RJ-13

FeaturesFeatures

Power ratings	0.75 W (70 °C) 0 W (120 °C)
Nominal resistance range	10 Ω ~ 5 MΩ
Resistance tolerance	± 10 %
Resistance law	Linear law（B）
Maximum input voltage	DC300 V or power rating, whichever is smaller
Maximum wiper current	100 mA or power rating, whichever is smaller
Effective electrical angle	230 ° (1 turn)
End resistance	1 % or 2 Ω , whichever is greater
C.R.V.	1 % or 3 Ω , whichever is greater
Operating temp. range	−55 ~ 120 °C
Temp. coefficient	10 Ω, 20 Ω, 5 MΩ : ± 250 10-6/°C maximum 50 Ω ~ 2 MΩ : ± 100 10-6/°C maximum
Insulation resistance	1000 MΩ minimum (DC500 V)
Dielectric strength	AC900 V, 60 s
Net weight	Approx. 1.90 g (RJ-13P) Approx. 4.50 g (RJ-13B Approx. 2.15 g (RJ-13PR) Approx. 2.50 g (RJ-13S) Approx. 2.78 g (RJ-13SR)

Stop strength	100 mN·m {1.02 kgf·cm}
Mechanical angle	270 ° (1 turn)
Operating torque	3 ~ 35 mN·m {30.6~357 gf·cm}
Rotational life	200 cycles 10 Ω ~ 200 Ω [ΔR/R ≦ ± (0.5 Ω +3 %)] 500 Ω ~ 5 MΩ [ΔR/R ≦ ± (0.5 Ω +2 %)]
Terminal to strength	20 N {2.04 kgf} minimum(Tensile strength）
Thrust to rotor	10 N {1.02 kgf} minimum
Solderability	245 ± 3 °C, 2 ~ 3 s

{ }：Reference only

Test item	Test conditions	Specifications
Thermal shock	-65~125 °C (0.5 h), 5 cycles	[ΔR/R ≦ 1%] [S.S. ≦ 1%]
Humidity	-10~65 °C (Relative humidity 80~98%), 10 cycles, 240 h	[ΔR/R ≦ 1%]
Shock	981 m/s2, 6 ms 6 directions for 3 times each	[ΔR/R ≦ 1%] [S.S. ≦ 1%]
Vibration	Amplitude 1.52 mm or Acceleration 196 m/s2 , 10 ~ 2000 Hz, 3 directions, 12 times each	[ΔR/R ≦ 1%] [S.S. ≦ 1%]
Load life	70 °C, 0.5 W, 1000 h	[ΔR/R ≦ 2 %] [S.S. ≦ 1 %]
Low temp. operation	−55 °C, 2 h	[ΔR/R ≦ 1 %] [S.S. ≦ 2 %]
High temp. exposure	120 °C, 250 h	[ΔR/R ≦ ２ %] [S.S. ≦ 2 %]
Immersion seal	85 °C, 60 s	No leaks (No continuous bubbles)
Soldering heat	Flow: 260 ± 3 ° C、5 ~ 6 s, two times Manual soldering： 380 ± 10 °C, 3 ~ 4 s	[ΔR/R ≦ 1%]

Δ R/R: Change in total resistance

S.S.: Setting stability

Nominal resistance valus(Ω)	Resistance code	Maximum input voltage(V)	Maximum wiper current (mA)
➡10	100	1.00	100
➡20	200	2.00	100
50	500	5.00	100
100	101	8.66	86.6
200	201	12.2	61.0
500	501	19.4	38.8
1k	102	27.4	27.4
2k	202	38.7	19.3
5k	502	61.2	12.2
10k	103	86.6	8.66
20k	203	122	6.10
➡25k	253	137	5.48
50k	503	194	3.88
100k	104	274	2.74
200k	204	300	1.50
➡250k	254	300	1.20
500k	504	300	0.60
1M	105	300	0.30
2M	205	300	0.15
➡5M	505	300	0.06

The products indicated by ➡ mark are manufactured upon receipt of order basis.

RJ-13	P	2０ kΩ	(2０３)
Series name	Product shape P：Top adjustment PR：Top adjustment with knob B：Panel mount SR：Side adjustment with knob S：Side adjustment	Resistance value	Resistance code

Nominal resistance values	➡10Ω, ➡20Ω,50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, ➡25kΩ, 50kΩ, 100kΩ, 200kΩ, ➡250kΩ,500kΩ, 1MΩ, 2MΩ, ➡5MΩ

The above part numbers are all available with the respective combination of <Nominal resistance values>
Verify the above part numbers when placing orders.
The products indicated by ➡ mark are manufactured upon receipt of order basis.

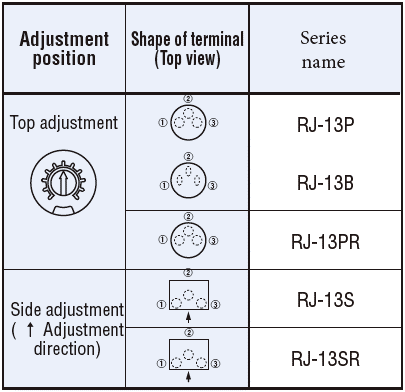

PART NUMBER	Adjustment position	Form of packaging	Pieces in package	CAD
RJ-13P	Top adjustment	Plastic bag	50 pcs./pack	3D CAD（Any Model）
RJ-13B	Panel mount	Plastic bag	25 pcs./pack	3D CAD（Any Model）
RJ-13PR	Top adjustment with knob	Plastic bag	25 pcs./pack	3D CAD（Any Model）
RJ-13S	Side adjustment	Plastic bag	25 pcs./pack	3D CAD（Any Model）
RJ-13SR	Side adjustment with knob	Plastic bag	25 pcs./pack	3D CAD（Any Model）
