Trimmer potentiometer CT-94
-
CT-94
-
CT-94
- ●To buy this product, please go to the following Online Web stores.
18 turns Cermet Trimmers
FeaturesFeatures
- Thin body design (4.8 mm thick)
- 18 turns, sealed, precision type
- In this series, material data sheets ideal for REACH-SVHC
surveys etc. can be downloaded in chemSHERPA-AI format. - Download chemSHERPA-AI from the list of P/N below
Electrical Characteristics
| Power ratings | 0.5 W (70 °C) 0 W (125 °C) |
|---|---|
| Nominal resistance range | 10 Ω ~ 2 MΩ |
| Resistance tolerance | ± 10 % |
| Resistance law | Linear law（B） |
| Maximum input voltage | DC300 V or power rating, whichever is smaller |
| Maximum wiper current | 100 mA or power rating, whichever is smaller |
| Effective electrical turn | 15 turns |
| End resistance | 1 % or 2 Ω , whichever is greater |
| C.R.V. | 1 % or 3 Ω , whichever is greater |
| Operating temp. range | −55 ~ 125 °C |
| Temp. coefficient | 10 Ω, 20 Ω : ± 250 10-6/°C maximum 50 Ω ~ 2 MΩ : ± 100 10-6/°C maximum |
| Insulation resistance | 1000 MΩ minimum (DC500 V) |
| Dielectric strength | AC900 V, 60 s |
| Net weight | Approx. 0.88 g (CT-94EP) Approx. 0.92 g (CT-94EW, EX, EY, EZ) |
Mechanical Characteristics
| Mechanical turn | 18 turns |
|---|---|
| Operating torque | 35 mN·m {357 gf·cm} maximum |
| Mechanical stop | Clutch action |
| Rotational life | 200 cycles [ΔR/R ≦ ± (2 Ω +3 %)] |
| Terminal strength | 10 N {1.02 kgf} minimum（Tensile strength) |
| Thrust to shaft | 10 N {1.02 kgf} minimum |
| Solderability | 245 ± 3 °C, 2 ~ 3 s |
{ }：Reference only
Environmental Characteristics
| Test item | Test conditions | Specifications |
|---|---|---|
| Shock | 981 m/s2, 6 ms 6 directions for 3 times each | [ΔR/R ≦ 1 %] [S.S. ≦ 1 %] |
| Thermal shock | −65 ~ 125 °C(0.5 h), 5 cycles | [ΔR/R ≦ 1 %] [S.S. ≦ 1 %] |
| Humidity | −10 ~ 65 °C (Relative humidity 80 ~ 98 %),10 cycles, 240 h | [ΔR/R ≦ 2 %] |
| Vibration | Amplitude 1.52 mm or, Acceleration 196 m/s2, 10 ~ 2000 Hz, 3 directions, 12 times each |
[ΔR/R ≦ 1 %] [S.S. ≦ 1 %] |
| Load life | 70 °C, 0.5 W, 1000 h | [ΔR/R ≦ 3 %] [S.S. ≦ 1 %] |
| Low temp. operation | −55 °C, 2 h | [ΔR/R ≦ 2 %] [S.S. ≦ 2 %] |
| High temp. exposure | 120 °C, 250 h | [ΔR/R ≦ 3 %] [S.S. ≦ 2 %] |
| Immersion seal | 85 °C, 60 s | No leaks (No continuous bubbles) |
| Soldering heat | Flow soldering :260 ± 3 °C, 5 ~ 6 s, two times maximum Manual soldering : 380 ± 10 °C, 3 ~ 4 s |
[ΔR/R ≦ 1 %] |
Δ R/R：Change in total resistance S.S. ：Setting stability
Maximum Input Ratings
| Nominal resistance values (Ω) | Resistance code | Maximum input voltage(V) | Maximum wiper current(mA) |
|---|---|---|---|
| 10※ | 100 | 1.00 | 100 |
| 20※ | 200 | 2.00 | 100 |
| 50 | 500 | 5.00 | 100 |
| 100 | 101 | 7.07 | 70.7 |
| 200 | 201 | 10.0 | 50.0 |
| 500 | 501 | 15.8 | 31.6 |
| 1k | 102 | 22.4 | 22.4 |
| 2k | 202 | 31.6 | 15.8 |
| 5k | 502 | 50.0 | 10.0 |
| 10k | 103 | 70.7 | 7.07 |
| 20k | 203 | 100 | 5.00 |
| 25k※ | 253 | 112 | 4.48 |
| 50k | 503 | 158 | 3.16 |
| 100k | 104 | 224 | 2.24 |
| 200k | 204 | 300 | 1.50 |
| 250k※ | 254 | 300 | 1.20 |
| 500k | 504 | 300 | 0.60 |
| 1M | 105 | 300 | 0.30 |
| 2M | 205 | 300 | 0.15 |
The products indicated by ※ mark are manufactured upon receipt of order basis.
Part Number Designation
| CT-94 | E | W | 2 kΩ (202) |
|---|---|---|---|
|
Series name |
Terminal pin E:
Sn (Lead-free)
|

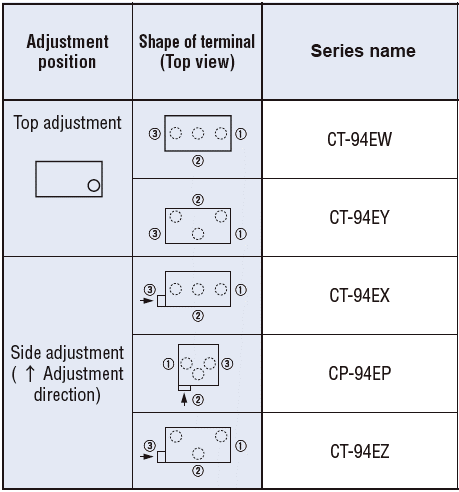

Terminal shape (Adjust Pos.)※1 W:
Y: X: P: V: Through hole (Top adjustment)
Through hole (Top adjustment) Through hole (Side adjustment) Through hole (Side adjustment) Through hole (Side adjustment) |
Resistance value (Resistance code) |
-
※1)For the details on each product shape, refer to the following table and Outline Dimensions.
| Nominal resistance values | 10 Ω*, 20 Ω*, 50 Ω, 100 Ω, 200 Ω, 500 Ω, 1 kΩ, 2 kΩ, 5 kΩ, 10 kΩ, 20 kΩ, 25 kΩ*, 50 kΩ, 100 kΩ, 200 kΩ, 250 kΩ*, 500 kΩ, 1 MΩ, 2 MΩ |
|---|
When ordering, please be sure to include the above nominal resistance value at the end of the part number in the table list below. *10 Ω item, 20 Ω item, 25 kΩ item, 250 kΩ item are made to order.
For resistance code, please refer to the Maximum Input Ratings table in the previous section.
List of Part Numbers
CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.11.00 or 2.10.00 available) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
| Part No. | Product shape | Form of packaging | Pieces in package | Material data | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CT-94EW | Top adjustment | Through hole | 50 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data (AI) Entry Support Tool for articles V2R1.01.0 (compatible with up to the latest data sheet ver. 2.11) from here.
|
||||||||
| CT-94EY | Top adjustment | Through hole | 50 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data (AI) Entry Support Tool for articles V2R1.01.0 (compatible with up to the latest data sheet ver. 2.11) from here.
|
||||||||
| CT-94EX | Side adjustment | Through hole | 50 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data (AI) Entry Support Tool for articles V2R1.01.0 (compatible with up to the latest data sheet ver. 2.11) from here.
|
||||||||
| CT-94EP | Sideition">Side adjustment | Through hole | 50 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data (AI) Entry Support Tool for articles V2R1.01.0 (compatible with up to the latest data sheet ver. 2.11) from here.
|
||||||||
| CT-94EZ | Side adjustment | Through hole | 50 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data (AI) Entry Support Tool for articles V2R1.01.0 (compatible with up to the latest data sheet ver. 2.11) from here.
|

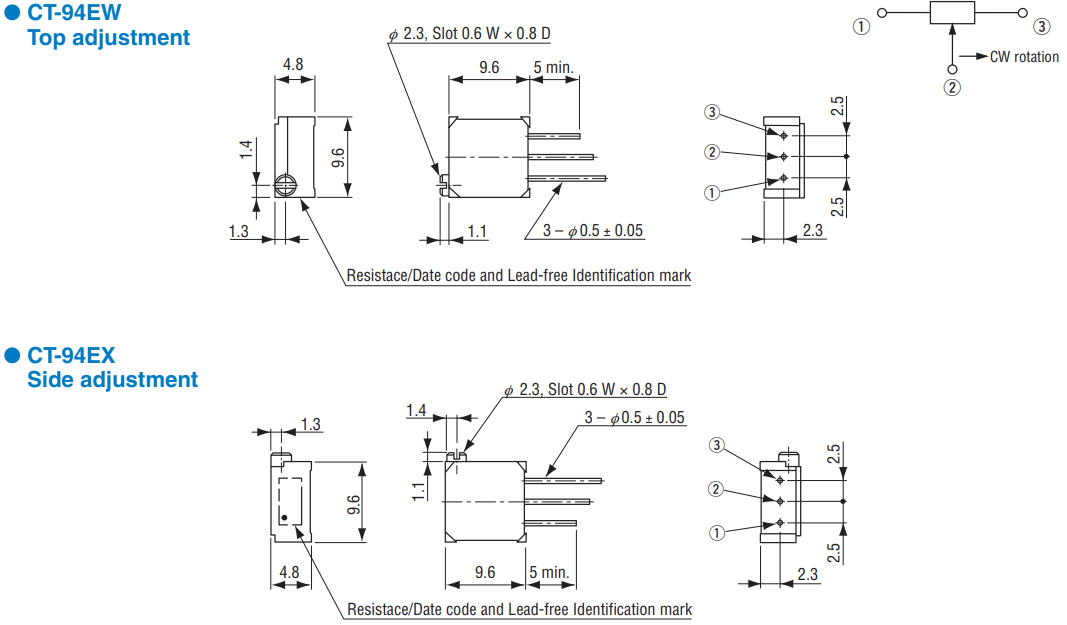

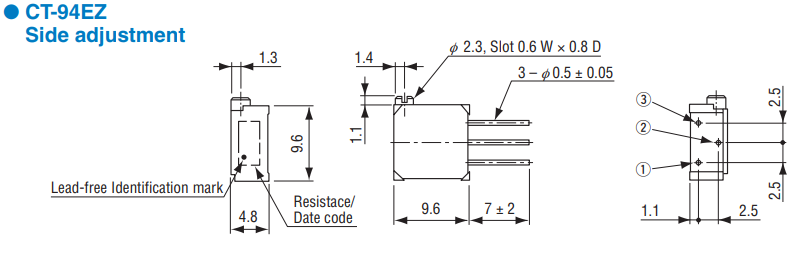

Outline Dimensions
Unless otherwise specified, tolerance: ± 0.3 (Unit: mm)
Packaging Specifications
〈Bulk pack specifications〉
Unit of bulk in a plastic bag is 50 pcs. per pack.
Boxing of bulk in a plastic bag is performed with 100 pcs. per box.
Documents
- ●The above contents and descriptions are subject to change without notice.
