Pushbutton switch SP101
- ●To buy this product, please go to the following Online Web stores.
Pushbutton Switches
FeaturesFeatures
-
Sharp Tactile Feel Snap action mechanism provides light tactile feel.
-
Gold-Plated Contacts for Low Current Applications
-
Compatible with PC Board Mount and Snap-in Panel Mount
-
3 Types of Terminals
Terminal styles are available in Solder terminal, and connector socket (EHR-5 from JST).
Specifications
| Rating | 60mA 30VDC Max. |
|---|---|
| Initial contact resistance | 50mΩ max.(1.5mA 200μVAC) |
| Dielectric strength | 500VAC 1 minute |
| Initial insulation resistance | 1,000MΩ min. (500VDC) |
| Electrical life | 50,000 operations |
| Operating force | 2.94±0.98N |
| Oepmepraetriantgu re range | －20～＋85℃ |
| tSetmorpaegrea ture range | －40～＋85℃ |
Precautions for use
| Soldering Specifications | Manual Soldering Device: Soldering iron 380℃, Max.; 3 seconds, Max. |
|---|---|
| Flux Cleaning |
|
Part number designation
| SP - | 1 | 01 | C - | C |
|---|---|---|---|---|
|
Series |
Poles 01: 1 bit |
Currents |
Switching function C:OFF － （ON） |
Terminal style None：Solder Terminal C : Connector Socket |
List of part numbers
| Part number | Poles | Switching function | Terminal style | CAD |
|---|---|---|---|---|
| ★SP101C | 1 bit | OFF － （ON） | Solder Terminal | |
| SP101F－C | 1 bit | ON －（ON） | Connector Socket |

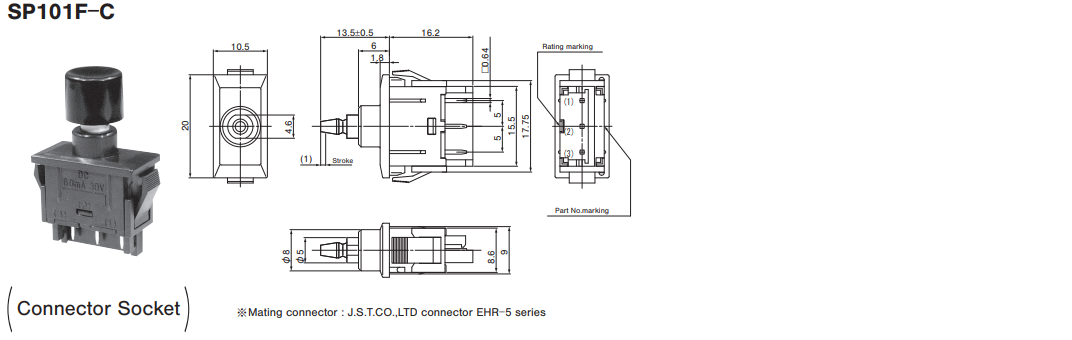

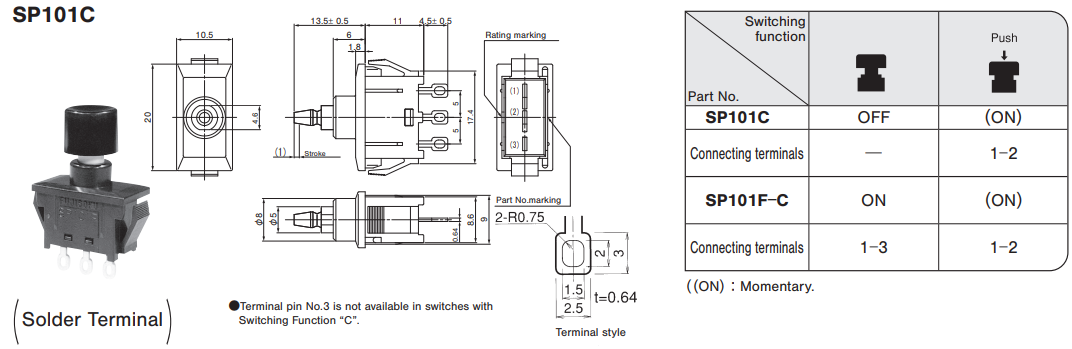

Outline Dimensions
(Unit:mm)
Documents
Environmental files
