Rocker switch HLS

●To buy this product, please go to the following Online Web stores.
To the Rocker switch“HLS series”page on the RS online shop
To the Rocker switch“HLS series”page on the Chip One Stop online shop
To the Rocker switch“HLS series”page on the Mouser online shop

Miniature Rocker Switches


FeaturesFeatures
  • Economical prices are achieved through out-and-out VA and silver-saving design.

  • Contact stability and high reliability are ensured thanks to the adoption of the seesaw type sliding contact mechanism (patented) (see the figure below) and the switch are usable for a wide range of current capacity from 1 mA to 12 A.

  • In addition, the self-extinguishing phenol resin is used for the housing material, thereby ensuring excellent insulation and surge resistance.

  • All models excluding HLS308A are UL recognized and CSA certified for high reliability.

Specifications

Rating HLS112A: AC125V 12A/AC250V 6A Max. AC・DC6V 1mA Min.
HLS208: AC125V 8A/AC250V 5A Max. AC・DC6V 1mA Min.
Initial contact resistance 20mΩ Max. (DC2~4V 1A)
Dielectric strength AC1500V 1 minute
Insulation resistance 100MΩ Min.(DC500V)
Electrical life 15,000 cycles

Part Number Designation

HLS112A12

Series

Number of poles

01: 1 bit
02: 2 bits
03: 3 bits

Current

08: 8 A
12: 12 A

Switching function

A/K: OFF-ON
D/N: ON-ON

Terminal style

None: TAB #187 (t=0.5)
12: Solder

◆HL series actuator shape

List of Part Numbers

Part No.SW functionTerminalsNo. of polesCurrentULCASCAD
Part No.:HLS112A OFF-ON TAB #187 (t=0.5) 1 bit 12 A
Part No.:HLS112D ON-ON TAB #187 (t=0.5) 1 bit 12 A
Part No.:HLS208K OFF-ON TAB #187 (t=0.5) 2 bits 8 A
Part No.:HLS208N ON-ON TAB #187 (t=0.5) 2 bits 8 A
Part No.:HLS112A12 OFF-ON Solder 1 bit 12 A
Part No.:HLS112D12 ON-ON Solder 1 bit 12 A
Part No.:HLS208K12 OFF-ON Solder 2 bits 8 A
Part No.:HLS208N12 ON-ON Solder 2 bits 8 A
Part No.:HLS308A12 OFF-ON Solder 3 bits 8 A - -
※UL File No. E43275, CSA File No. LR38341

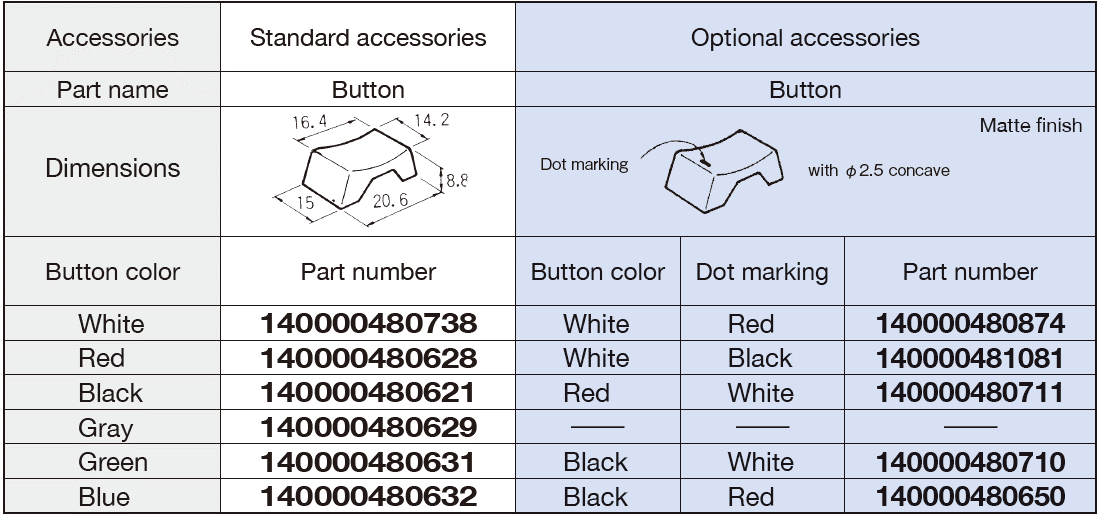

Standard Accessories
ActuatorPart No.ColorOutline dimensions
Rocker 140000480738 White
140000480628 Red
140000480621 Black
140000480629 Gray
140000480631 Green
140000480632 Blue
Specify either one of above in part number when placing an order.
Optical Accessories





ActuatorPart No.ColorMarkOutline dimensions
Rocker 140000480874 White Red
140000481081 White Black
140000480710 Black White
140000480650 Black Red

Terminal Styles

Seesaw Type Sliding Mechanism (Patented)

The movable contact moves from (A) to (B) as it wipes the contact surface and, at (B) and (C), the switching feel can be obtained due to the seesaw effect on the common terminal (2). Then, the movable contact moves from (C) to (D) as it wipes the contact surface and, at the point (D), the common terminal (2) and the terminal (3) are turned ON.

Dimension L

◆HLS308

Panel Cut-Out Dimension

◆HLS208

◆HLS318

Mounting the HLS Type Button

To mount the button, insert the lower-rocker side first, and press in the other side while pressing the button with the ball of a fi nger. The button is not replaceable once it is mounted.

Placing an order

Select one from the table below and specify the color for the part number when ordering.

Soldering Specifications

Device : Soldering iron
420℃, Max.; 3 seconds, Max.

Environmental Data

●The above contents and descriptions are subject to change without notice.
