Ideal for Replacing Jumper Pins, Dual SPDT Types Available
FeaturesFeatures
- Compatible with most automatic pick & place machinery
- Compact and space saving SMD type
- Excellent contact stability by twin Gold-plated contact
- Low profile design of 2.5 mm
- In this series, material data sheets ideal for REACH-SVHC
surveys etc. can be downloaded in chemSHERPA-AI format. - Download chemSHERPA-AI from the list of P/N below
Standard Specifications
| Operating temp. range | - 40 ~ 85 °C |
|---|---|
| Storage temp. range | - 40 ~ 85 °C |
| Sealing | Washable type available with seal tape |
| Net weight | Approx. 0.05 g (CAS-120) Approx. 0.08 g (CAS-220 / D20) |
Electrical characteristics
| Contact rating | Non-switching: 100 mA 50 VDC Switching: 100 mA 6 VDC / 25 mA 24 VDC Minimum: 1 μA 20 mVDC |
|---|---|
| Contact resistance | 50 mΩ maximum |
| Insulation resistance | 1000 MΩ (100 VDC) minimum |
| Dielectric strength | 500 VAC, 60 s |
Mechanical Characteristics
| Operating force | 0.5 ~ 5 N {0.05 ~ 0.51 kgf} |
|---|---|
| Stop strength | 10 N {1.02 kgf}, 60 s |
| Solderability | 245 ± 3 °C, 2 ~ 3 s |
| Soldering heat | Reflow: 255 °C (Peak temperature) （Please refer to the profile below） Manual soldering: 350 ±10 °C, 3 ~ 4 s |
| Shear (Adhesion) | 5 N {0.51 kgf} 10 s |
| Substrate bending | Width 90 mm, bend 3 mm, 5 s, 1 time |
| Pull-off strength | 5 N {0.51 kgf} 10 s |
〈Reflow profile for soldering heat evaluation〉
Environmental Characteristics
| Vibration | Amplitude 1.5 mm or (Acceleration) 98 m/s2, 10-500 Hz, 3 directions for 10 cycles each |
|---|---|
| Shock | 490 m/s2, 11 ms 6 directions for 3 times each |
| Load life | Continuous load 2000 cycles, 100 ± 10 mA, 6 ± 0.5 VDC |
| Humidity | - 10 ~ 65 °C, Relative humidity 0 ~ 96 %, 24 h for 10 cycles |
| High temp. exposure | 85 °C, 96 h |
| Low temp. exposure | - 40 °C, 96 h |
| Thermal shock | - 40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles |
Part Number Designation
| CAS - | 1 | 2 | 0 | T | B | 1 |
|---|---|---|---|---|---|---|
|
Series name |
No. of poles 1：1 pole (SPDT) 2：2 poles (2PDT) D：Dual (Dual SPDT) |
No. of contacts 2：2 contacts |
Setting position 0：Top setting |
Form of packaging T：Taping (Reel) Blank：Bulk in plastic bag |
Shape of terminal A：J-hook B：Gull wing |
Structure 1：Non-washable type (Without seal tape) Standard type 2：Non-washable type (With seal tape) Blank : Washable type (With seal tape) |
SPDT : Single Pole Double Throw 2PDT : Two Poles Double Throw
List of Part Numbers
CAD and chemSHERPA-AI (a material data sheet ideal for REACH surveys, etc. / version: 2.11.00 or 2.10.00 available) can be downloaded from the button for each P/N in the table below. *Need to log in to download.
| Part number | Shape of terminal | No. of poles | Structure | Packaging spec | Material data | CAD | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAS-120TA1 | J-hook | 1 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120A1 | J-hook | 1 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220TA1 | J-hook | 2 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220A1 | J-hook | 2 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20TA1 | J-hook | Dual SPDT | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20A1 | J-hook | Dual SPDT | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120TB1 | Gull wing | 1 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120B1 | Gull wing | 1 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220TB1 | Gull wing | 2 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220B1 | Gull wing | 2 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20TB1 | Gull wing | Dual SPDT | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20B1 | Gull wing | Dual SPDT | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120TA2 | J-hook | 1 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120A2 | J-hook | 1 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220TA2 | J-hook | 2 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220A2 | J-hook | 2 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20TA2 | J-hook | Dual SPDT | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20A2 | J-hook | Dual SPDT | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120TB2 | Gull wing | 1 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120B2 | Gull wing | 1 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220TB2 | Gull wing | 2 | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220B2 | Gull wing | 2 | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20TB2 | Gull wing | Dual SPDT | Non-washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20B2 | Gull wing | Dual SPDT | Non-washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120TA | J-hook | 1 | Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120A | J-hook | 1 | Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220TA | J-hook | 2 | Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220A | J-hook | 2 | Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20TA | J-hook | Dual SPDT | Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20A | J-hook | Dual SPDT | Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120TB | Gull wing | 1 | Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-120B | Gull wing | 1 | Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220TB | Gull wing | 2 | Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-220B | Gull wing | 2 | Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20TB | Gull wing | Dual SPDT | Washable | 1000 pcs./reel |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|
||||||||
| CAS-D20B | Gull wing | Dual SPDT | Washable | 100 pcs./pack |
Downloadable chemSHERPA-AI files by selecting the latest ver. 2.11.00 or the previous ver. 2.10.00 from the following buttons. [Need to log in to download]
*
You can download the chemSHERPA Data(AI) Entry Support Tool for articles V2R1.00.1 (compatible with up to the latest data sheet ver.2.10) from here.
|

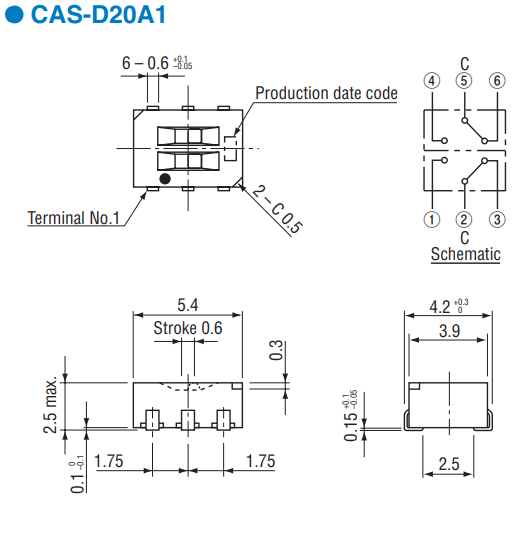

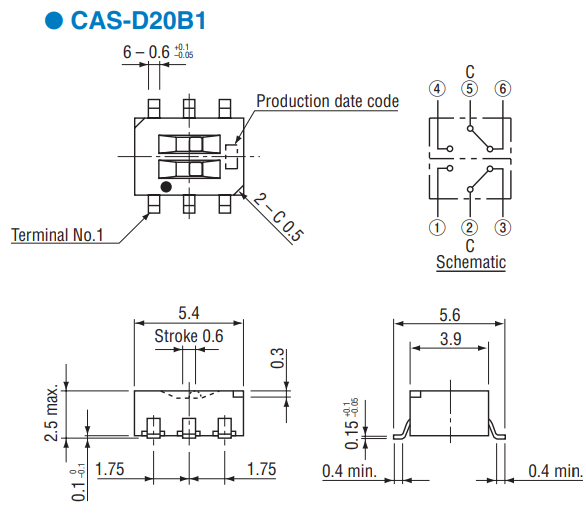

Outline Dimensions
Unless otherwise specified, tolerance: ±0.3 (Unit: mm)

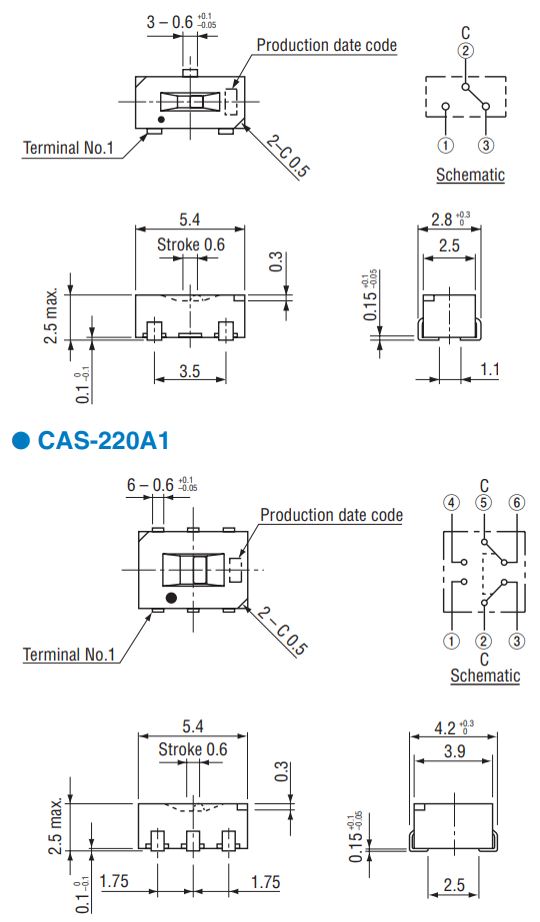

● CAS-120A1

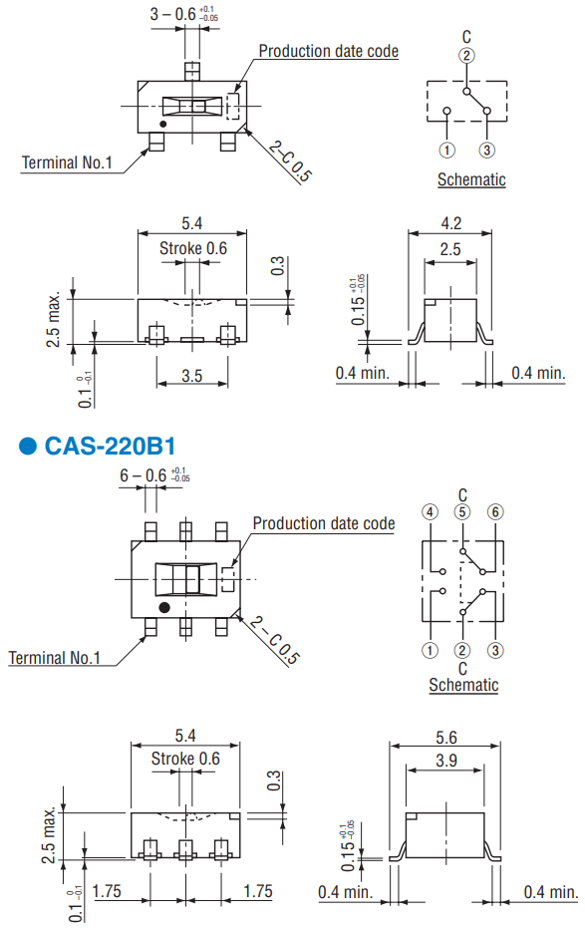

● CAS-120B1
Recommended P.C.B. PAD Outline Dimensions
(Unit: mm)
Packaging Specifications
〈Taping packaging specifications〉
Taping version is packaged in 1000 pcs. per reel. Orders will be accepted for units of 1000 pcs., i.e., 1000, 2000, 3000 pcs., etc.
Taping version is boxed with two reels (2000 pcs.).
Maximum number of consecutive missing pieces=2 Leader length and reel dimension are shown in the diagrams below:
(Unit:mm)
-
● Embossed tape dimensions
-
●Reel dimensions
(Conforms to JIS C 0806-3)
(Unit:mm)
-
● CAS-120TA, TB
-
● CAS-220TA, TB・D20TA, TB
(Conforms to JIS C 0806-3, In accordance with EIAJ ET-7200A)
〈Bulk pack specifications〉
Boxing of bulk pack in a plastic bag is performed with 100 pcs. (standard 500 pcs.) per box.
Documents
- ●The above contents and descriptions are subject to change without notice.
